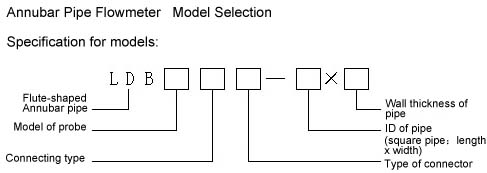

Series Code |
Model of Probe |
Type of connector |
Connecting Type |
LDB |
01 Size of probe: Φ16 Suit for DN100~500mm 02 Size of probe: Φ25 Suit for DN300~1000mm 03 Size of probe: Φ36 Suit for DN500~1800mm |

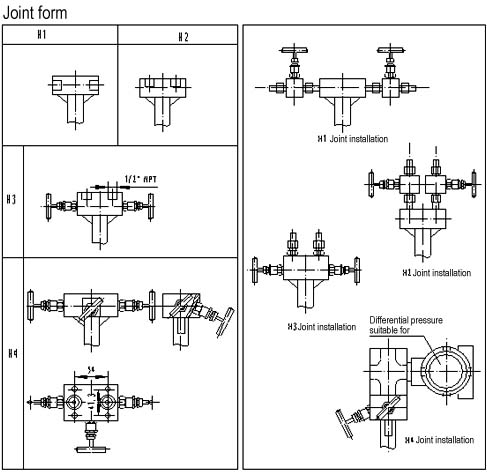

H1 Horizontal welding stop valve type H2 Vertical welding stop valve type H3 Stop valve type H4 Tri-valve set type (can be directly connected with differential pressure transmitter) |
M1 Applied for No. 01 and 02 probe, working pressure:<1.0MPa, temperature of medium: ≤180℃ M2 Applied for No. 01 and 02 probe, working pressure:<1.0MPa, temperature of medium: ≤320℃ Applied for No. 01 and 02 probe, working pressure:<1.6MPa, temperature of medium: Applied for No. 01, 02 and 03 probe, working pressure:<1.0MPa, temperature of medium: ≤320℃ M5 Applied for No.01,02 and 03 probe, working pressure:<1.6MPa. temperature of medium: ≤320℃ |
