Technical index：
Precision:±0.5%
Repeatability:0.1%
Straight pipe section:upstream of 0-3DN,downstream of 2-3DN
Range of β values:0.40-0.85
Measuring diameter:≥15mm
Turndown ratio:10/1
Temperature of medium:<500℃
Pressure level:32MPa
Pressure loss:Similar to the Venturi tube

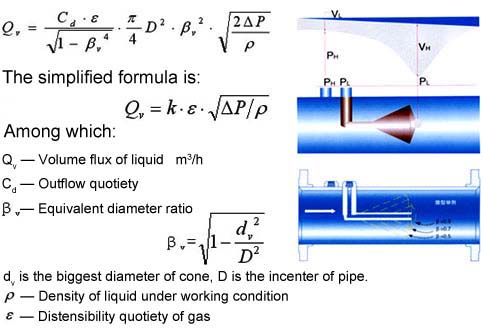

At the centre of measuring pipe of V-cone flowmeter, there hanging a V-cone, via passing through the cone, liquid was speeded up and the static pressure was decreased and forms a low-pressure zone at the cone’s back, i.e. a throttle pressure△P was produced in the front of and at the back of the cone. According to Bernoulli equation and successional flux equation, acquires a volume flux equation of V-cone flowmeter.
|

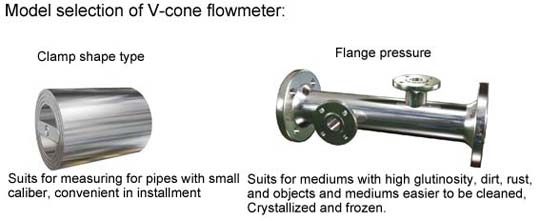

Type Project |
Clamping installation type |

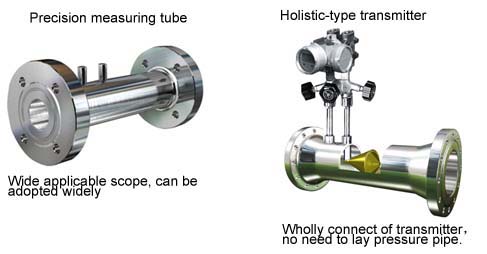

Precision measuring pipe |
Pipe butt style |
Flange pressure |
Integral transmitter |
|
Model |
VZW |
VZM |
VZG |
VZF |
VZT |
|
Pipe diameter scope |
DN15-150 |
DN25-1600 |
DN15-1600 |
DN50-1600 |
DN25-1600 |
|
Temperature of medium |
<500oC |
-50℃ ~ 300℃ |
-50℃~ 120℃ |
||
|
Material for measuring pipe |
20#, 1Cr18Ni9, 304, 316, 316L, or according to user’s working condition requirement |
||||
|
Material of cone |
1Cr18Ni9Ti,304, 316, 316L or according to user’s working condition requirement |
||||
|
Installation mode |
Clamp flange |
Flange connecting |
Jointing with pipe or connecting in thread |
Flange connecting |
Flange connecting |
|
Accessory |
Clamping flange Bolt sealing plate Pressure tapping |
Clamping flange sealing plate Bolt Pressure tapping |
Pressure tap |
Clamping flange sealing plate bolt |
Clamping flange Bolt Sealing plate Tri-valve set transmitter |
